HDL-M/R12.16.1-CD

12CH 16A Energy Management Actuator

Questa combinazione non esiste.

Aggiungi al carrello

HDL

Conditions générales
2 ans de garantie
Shipping: 2-3 Business Days

KNX 16A High Power Switch Actuator with Current Detection adopts 50A magnetic latching relay, which has three types(4CH, 8CH and 12CH) of output circuits, and each channel outputs 16A current. This series of High Power Actuators have the characteristics of long life, low power consumption and fast execution speed.

- 16A High Power Switch Actuators with Current Detection include 3 types: 4, 8 and 12 channels of actuator.
- Maximum output current of each channel:16A
- Control functions: Statistical ON time, Status response, Status recall, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene control, Threshold function, Curtain control, etc.
- Logic function: AND, OR, XOR.
- Heating function: PWM(1bit/1byte) control output.
- Current detection function: Current report, Current surveillance, Current conformance detection, Current threshold comparison detection

Basic Parameters
- Working voltage 21~30V DC
- Working current 15mA/30V DC
- Input voltage 120V/240V AC (50/60Hz)
- Communication KNX
- Cable diameter of KNX terminal 0.6-0.8mm
- Rated switch current 16A lighting load, max inrush 500A
- Operation times >100,000
- Line in/Line out terminals 2.5-4mm2
- Output channel 4CH/16A, 8CH/16A, 12CH/16A
- Capacitance <300μf<>
External Environment
- Working temperature -5℃~45℃
- Working relative humidity ≤90%
- Storage temperature -20℃~60℃
- Storage relative humidity ≤93%
Specifications
- Dimensions
- M/R4.16.1-CD
- 90×72×64(mm)
- M/R8.16.1-CD
- 90×144×64(mm)
- M/R12.16.1-CD
- 90×216×64(mm)
- Net weight
- M/R4.16.1-CD: 257g
- M/R8.16.1-CD: 577g
- M/R12.16.1-CD: 823g
- Housing material Flame-retardant nylon
- Installation 35mm DIN rail installation
- Protection rating (Compliant with EN 60529) IP20

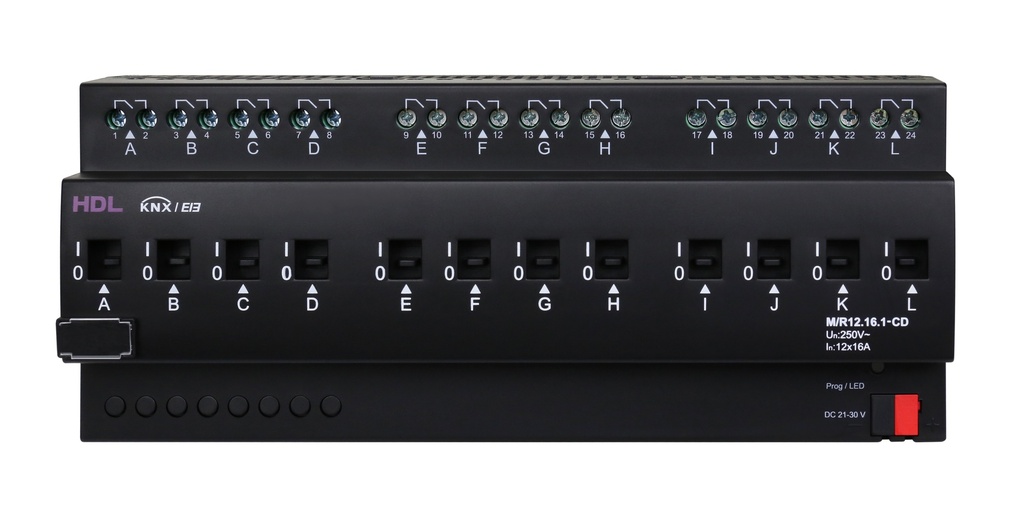

KNX 12CH 16A High Power Switch Actuator with Current Detection
