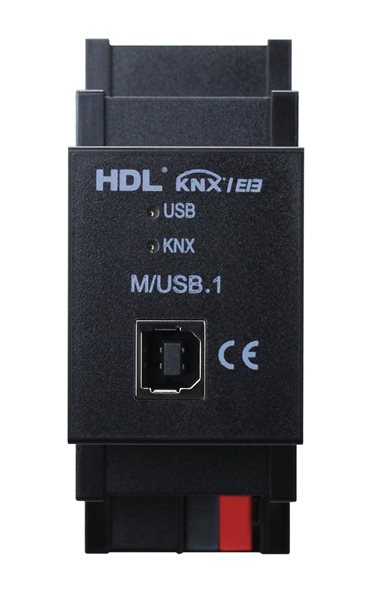

HDL-M/USB.1

https://www.squarebrain.ch/web/image/product.template/345/image_1920?unique=4ceff2c

KNX USB Interface, DIN-Rail Mount, with USB Conector galvanically isolated from KNX Bus that establish a bidirectional data connection between PC and KNX BUS, Enable addressing, setting parameters, visualzation, protocolin and diagnoisis of the bus devices.

(324,00 CHF / Unità)

Questa combinazione non esiste.

HDL
Contattaci

Conditions générales
2 ans de garantie
Shipping: 2-3 Business Days

KNX USB Interface is a KNX system device with a USB interface that establishes bidirectional data transfer between the computer and the KNX Bus. The KNX USB Interface supports operations, for example, KNX address management, application parameter management, and KNX Bus device diagnostics. The device is used in conjunction with ETS and standard KNX software.

  • Supports KNX address management, application parameter management, and KNX Bus device diagnostics
  • Connects PC and KNX devices to enable KNX device programming through PC. USB drive is required for and the first time.
  • Supports telegrams with maximum 228 bytes length.

Basic Parameters

  • Working voltage 21~30V DC
  • Working current 10mA/30V DC
  • Communication KNX
  • Interface USB
  • Cable diameter of KNX terminal 0.6 - 0.8mm

External Environment

  • Working temperature -5℃~45℃
  • Working relative humidity ≤90%
  • Storage temperature -20℃~60℃
  • Storage relative humidity ≤93%

Specifications

  • Dimensions 90mm×36mm×70mm
  • Net weight 70g
  • Housing material PA66
  • Installation 35mm DIN rail installation
  • Protection rating (Compliant with EN 60529) IP20
  • rating (Compliant with EN 60529) IP20

 KNX USB Interface
