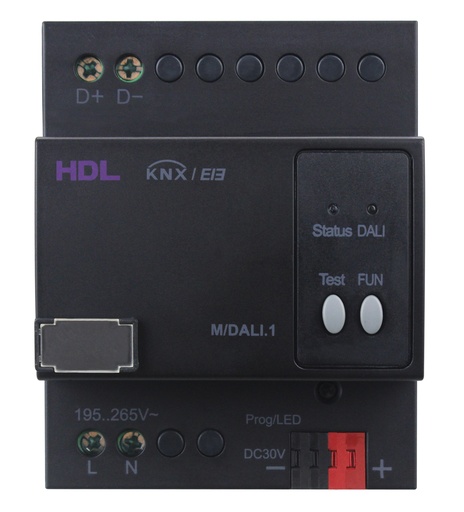

HDL-M/DALI.1

https://www.squarebrain.ch/web/image/product.template/18/image_1920?unique=96facf0

model：M/DALI.1
With built-in DALI power supply and a single DALI Bus, KNX-DALI Gateway can be connectted to up to 64 DALI devices. Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.

(315.00 CHF / Unités)

Cette combinaison n'existe pas.

Contactez-nous
HDL

Conditions générales
2 ans de garantie
Shipping: 2-3 Business Days


With built-in DALI power supply and a single DALI Bus, KNX-DALI Gateway can be connectted to up to 64 DALI devices. Real-time failure detection enables the gateway to detect ballast failure and lamp failure etc.

  • Real-time failure detection for ballasts and lamps, etc.
  • Target control: Broadcast control, Channel control, Group control, Scene control, Staircase light control, Sequence control, Emergency light control
  • Each channel and group supports Switch ON/OFF, Relative dimming, Absolute dimming, Status response function.
  • In conjunction with HDL KNX Assistant Software, DALI Gateway enables address management and assignment of DALI ballast.
  • Group scene control supported, which can be configured and managed via HDL KNX Assistant Software.
  • Color temperature control function supported, which can be applied to broadcast, channel, group and scene control of DT8 type color temperature control ballasts.
  • Online update.

Basic Parameters

  • Working voltage 21~30V DCWorking current 5mA/30V DCInput voltage AC100-240V (50/60Hz)DALI output 64 channelsCommunication KNX

Cable diameter of KNX terminal 0.6 – 0.8mm

External Environment

  • Working temperature -5℃~45℃Working relative humidity ≤90%Storage temperature -20℃~60℃

Storage relative humidity ≤93%

Specifications

  • Dimensions 72mm×90mm×64mmNet weight 241gHousing material NylonInstallation35mm DIN rail installationProtection rating (Compliant with EN 60529) IP20


KNX DALI Gateway
