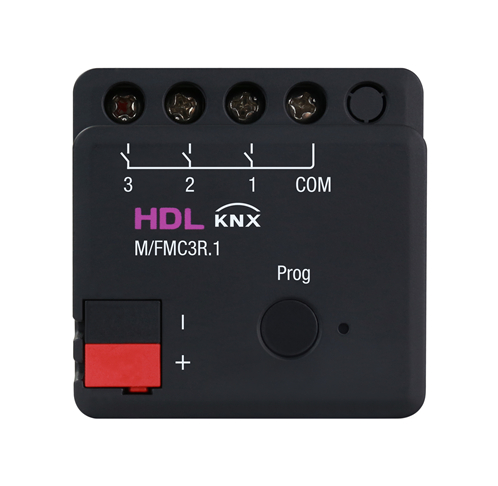

KNX 3CH 10A Flush- mounted Switching Actuator is an actuator with 3CH 10A relay control channels, 7 dry contact input channels and 7 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting, curtain, fan,sockets, etc.

• Supports 3CH 10A relay switch control channels
• 7 dry contact input channels and 7 LED output channels
• Programming buttons and programming indicators available
• Short press the programming button to enter the programming mode, the red indicator is always on in the programming mode; long press the button to control all the relay channels on/off.
• With scene control, staircase light control, delay control functions
• Channel running time and switching times statistics

Basic Parameters

• Working voltage ：21~30V DC
• Working current ：25mA/30V DC
• Auxiliary voltage：20~30V DC
• Auxiliary current：53mA/24V DC
• Relay channel ：3CH, 10A/CH (AC100-240V, 50/60Hz)
• Dry contact：7CH dry contact input
• LED：7CH LED output, 12mA/CH
• Communication ：KNX
• Cable diameter of KNX terminal：0.6-0.8mm

External Environment

• Working temperature ：-5℃~45℃
• Working relative humidity ：≤90%
• Storage temperature ：-20℃~60℃
• Storage relative humidity ：≤93%

Specifications

• Dimensions：50mm×50mm×22.8mm
• Net weight：57g
• Housing material：Flame retardant PC
• Installation：Wall box
• Protection rating (Compliant with EN 60529) ：IP20
