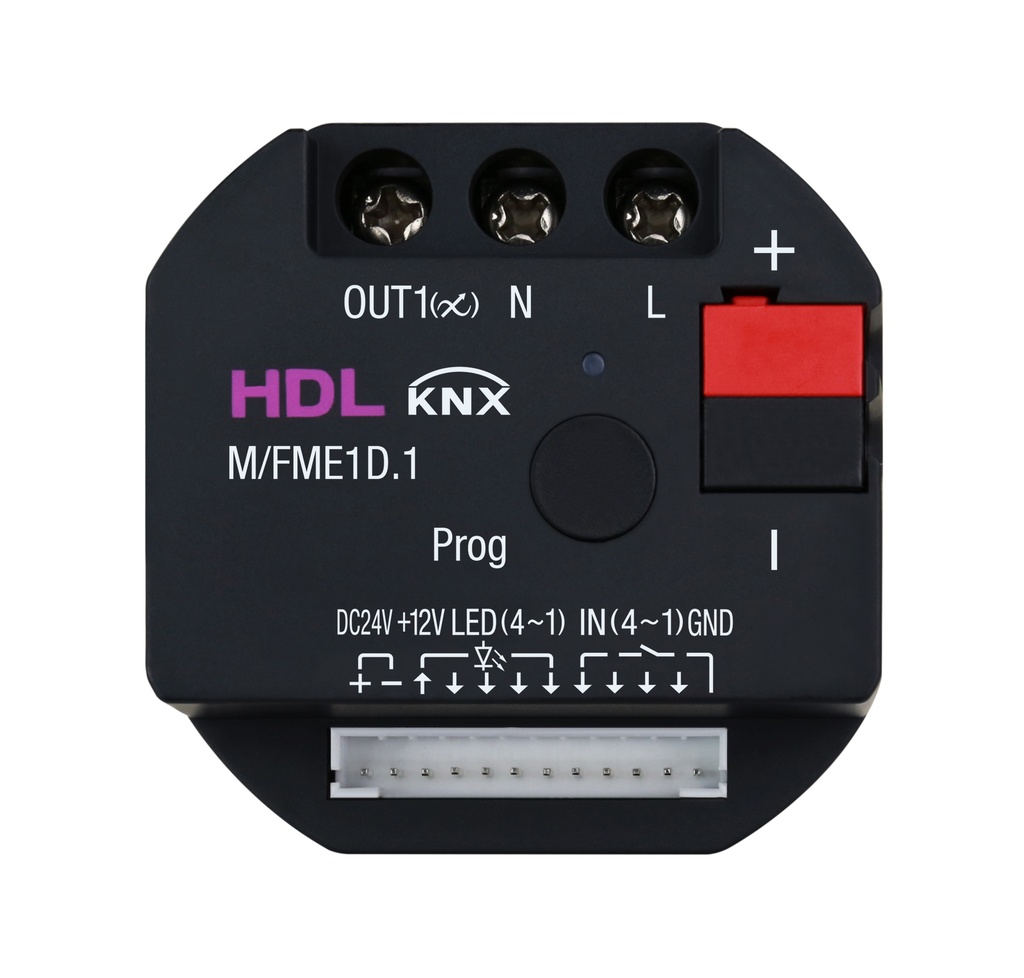

HDL-M/FME1D.1

https://www.squarebrain.ch/web/image/product.template/174/image_1920?unique=d6f200b

1CH 1A Flush-mounted Mosfet Dimming Actuator

169.00 CHF 169.0 CHF 169.00 CHF

169.00 CHF

Pas disponible à la vente

(169.00 CHF / Unités)

Cette combinaison n'existe pas.

Contactez-nous
HDL

Conditions générales
2 ans de garantie
Shipping: 2-3 Business Days

KNX 1CH 1A Flush- mounted Dimming Actuator (EU) is an actuator with 1CH 1A dimming control channel, 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel,the actuator enables smart dimming control of home lighting.

  • Supports 1CH 1A relay dimming control channel
  • 4 dry contact input channels and 4 LED output channels
  • Programming buttons and programming indicators available
  • Short press the programming button to enter the programming mode, the red indicator is always on in the programming mode; long press the button to control all the dimming channels on/off.
  • With scene control, staircase light control, dimming control functions

Basic Parameters

  • Working current ：25mA/30V DC
  • Working voltage ：21~30V DC
  • Auxiliary voltage ：20~30V DC
  • Auxiliary current：25mA/24V DC
  • Dimming channel ：1CH, 1A/CH (AC100-240V, 50/60Hz)
  • Dry contact：4CH dry contact input
  • LED：4CH LED output, 12mA/CH
  • Communication ：KNX
  • Cable diameter of KNX terminal：0.6-0.8mm
External Environment
  • Working temperature ：-5℃~45℃
  • Working relative humidity ：≤90%
  • Storage temperature ：-20℃~60℃
  • Storage relative humidity ：≤93%

Specifications

  • Dimensions：46.8mm×46.8mm×23mm
  • Net weight：37g
  • Housing material：Flame retardant PC
  • Installation：Wall box
  • Protection rating (Compliant with EN 60529) ：IP20

 KNX 1CH 1A Flush-mounted Dimming Actuator (EU)
