  2. HDL-M/R16.10.1

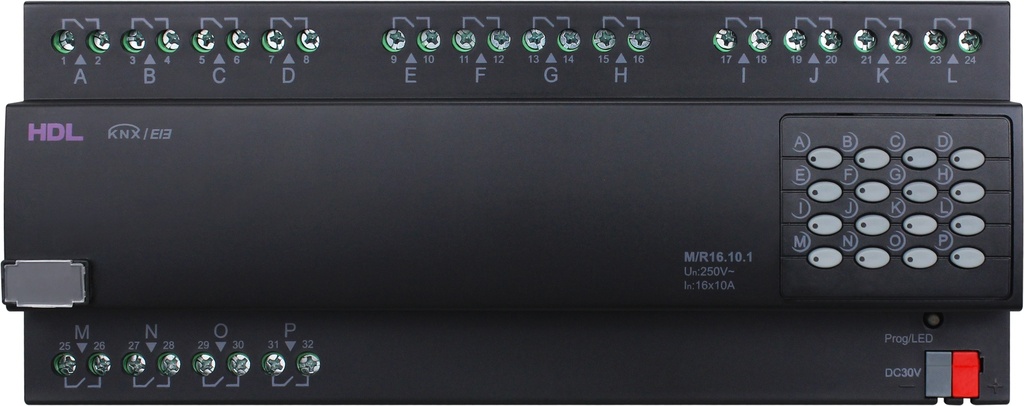

HDL-M/R16.10.1

https://www.squarebrain.ch/web/image/product.template/178/image_1920?unique=d6f200b

16CH 10A High Power Switch Actuator

383.00 CHF 383.0 CHF 383.00 CHF

383.00 CHF

Pas disponible à la vente

(383.00 CHF / Unités)

Cette combinaison n'existe pas.

Contactez-nous
HDL

Conditions générales
2 ans de garantie
Shipping: 2-3 Business Days

KNX 10A High Power Switch Actuator includes 4 types (4CH, 8CH, 12CH and 16CH) of output circuits, and each channel outputs 10A current. With characteristics of long life, low power consumption and fast execution speed, this series of actuators are in full compliance with European KNX safety standards and protocols of high-power switching equipment.

  • 10A High Power Switch Actuators include 4 types: 4, 8, 12 and 16 channels of actuator.
  • Maximum output current of each channel:10A.
  • Control functions: Statistical ON time, Status response, Status recall, Staircase light, Flashing, ON/OFF delay,
  • Protection delay, Scene control, Threshold function, Curtain control, etc.
  • Logic function: AND, OR, XOR, Gate.
  • Heating function: PWM(1bit/1byte) control output.

Basic Parameters

  • Working voltage: 21~30V DC Class 2
  • Working current: 15mA/30V DC
  • Input voltage:120V/240V AC (50/60Hz)
  • Communication: KNX
  • Cable diameter of KNX terminal: 0.6-0.8mm
  • Rated switch current: 10A lighting load, max inrush 500A
  • Operation times: >100,000
  • Line in/Line out terminals: 2.5-4m㎡
  • Output channel: 16CH/10A
  • Capacitance: <300μf<>

External Environment

  • Working temperature : -5℃~45℃
  • Working relative humidity : ≤90%
  • Storage temperature : -20℃~60℃
  • Storage relative humidity : ≤93%

Specifications

  • Dimensions：90×216×64(mm)
  • Net weight：830g
  • Housing material：Flame-retardant nylon
  • Installation ：35mm DIN rail installation
  • Protection rating (Compliant with EN 60529) ：IP20


 KNX 16CH 10A High Power Switch Actuator
