HDL-M/R4.16.1

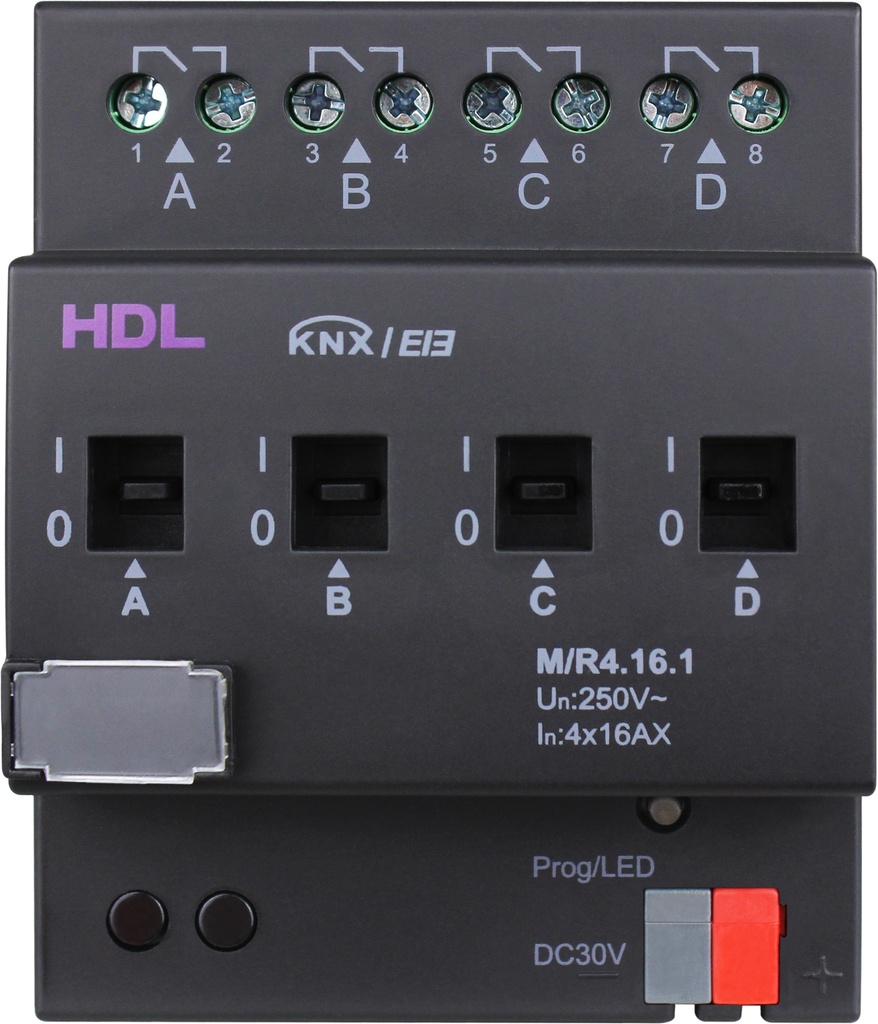

4CH 16A High Power Switch Actuator

Cette combinaison n'existe pas.

Ajouter au panier

HDL

Conditions générales
2 ans de garantie
Shipping: 2-3 Business Days

KNX 16A High Power Switch Actuator adopts 50A magnetic latching relay, which has three types(4CH, 8CH and 12CH) of output circuits, and each channel outputs 16A current. This series of High Power Actuators have the characteristics of long life, low power consumption and fast execution speed.

16A High Power Switch Actuator includes 3 types: 4, 8 and 12 channels of actuator.
Maximum output current of each channel: 16A.
Control functions: Statistical ON time, Status response, Status recall, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene control, Threshold function, Curtain control, etc.
Logic function: AND, OR, XOR, Gate.
Heating function: PWM(1bit/1byte) control output.

Basic Parameters

Working voltage 21~30V DC
Working current 15mA/30V DC
Input voltage 120V/240V AC (50/60Hz)
Communication KNX
Cable diameter of KNX terminal 0.6-0.8mm
Rated switch current 16A lighting load, max inrush 500A
Operation times >100,000
Line in/Line out terminals 2.5-4mm2
Output channel 4CH, 16A/CH; 8CH, 16A/CH; 12CH, 16A/CH
Capacitance <300μf

External Environment

Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%

Specifications

Dimensions
M/R4.16.1 ：90×72×64(mm)
M/R8.16.1 ：90×144×64(mm)
M/R12.16.1 ：90×216×64(mm)
Net weight
M/R4.16.1: 257g
M/R8.16.1: 577g
M/R12.16.1: 823g
Housing material Flame-retardant nylon
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20

KNX 4CH 16A High Power Switch Actuator
