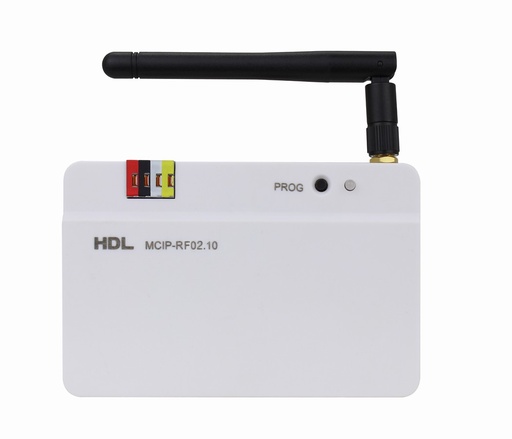

Wireless Mesh Gateway, a gateway based MESH technology, RJ45, HDL-BUS, RF interface, which can interconnect different media platforms (RS485, Ethernet, RF) of HDL intelligent devices Work mode: Mesh mode and bridge mode, Communication distance indoor 30m (barrier free), Working power 12~30 VDC.

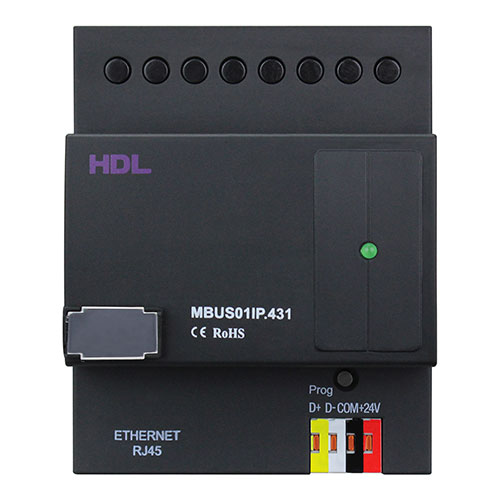

1 Port Programming Gateway, enables communication through an Ethernet connection or internet connection; this allows the Buspro system to then act as a remote server connection.

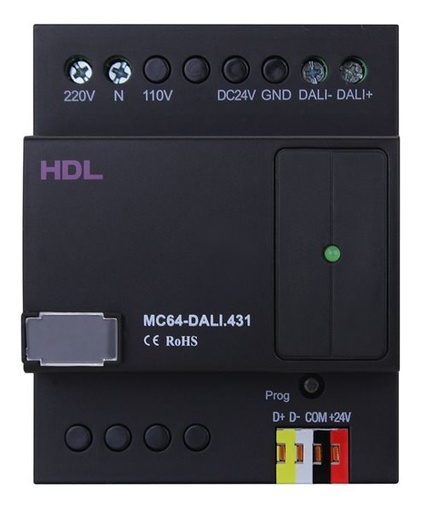

64CH DALI Ballast Dimming Actuator, DIN-Rail Mount, with built in DALI power supply and single DALI bus. The unit can also support 64 DALI ballasts, and scene control. The scene control allows the creation of 16 areas, with each area having 16 scenes.

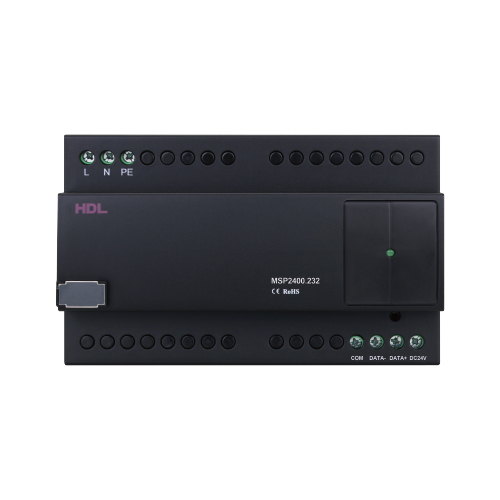

2400mA Power Supply Module, 110V/220V AC Input 50-60Hz, DC24/2400mA output, (Overheat, Overload, Surge Protection).

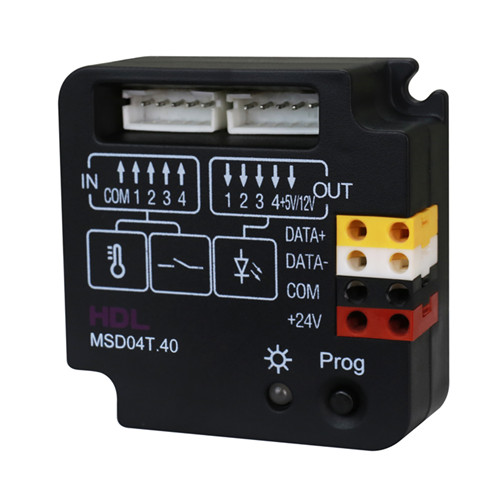

4 Zone Dry Contact Module, support switching and dimming, and displaying channel status via LED’s, with temperature sensor.

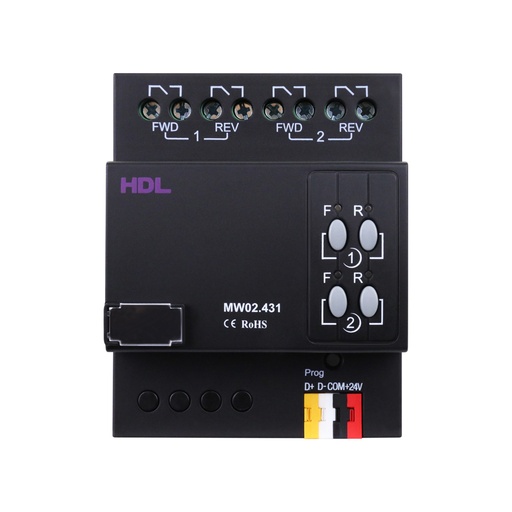

2Ch Motorized Curtain Module, DIN-Rail Mount, 2CH and 5A per channel, has a settable curtain running time, inching control, and hardware/ software features that protect the motor and gearing systems.

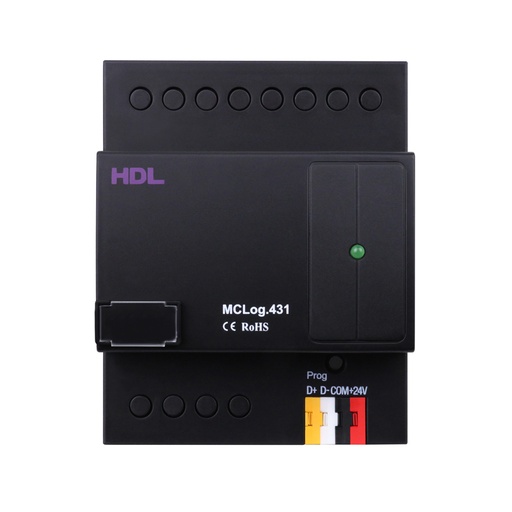

Logic Automation Module, provides centralised control over a range of targets. The module is capable of accepting 12 logic types, and has in total 960 logic blocks. The logic conditions enable the input of date and timing information, universal switch states, and external inputs.

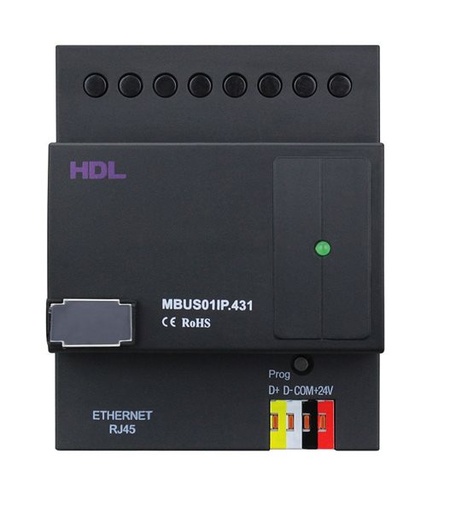

1 Port Programming Gateway, enables communication through an Ethernet connection or internet connection; this allows the Buspro system to then act as a remote server connection.
